Nissan Cube Life > Cube Tech, Modifications, and DIY > Brakes, Wheels & Suspension > The Official Lowering Spring & Coilover Thread
Pages: [1] 2   Go Down
« previous next »
  Print
Author Topic: The Official Lowering Spring & Coilover Thread  (Read 4452 times)
SlammedNiss
Low Rider
***

Rep Horsepower: 10
Offline Offline

Gender: Male
Posts: 269



WWW
« on: January 31, 2011, 08:35:49 PM »
Looking for a new ride height? Here are the current manufacturers that provide lowering springs and coilovers for your Cube.

Provided are the manufacturer, website (click on the manuf. name), model #, and change in ride height & spring rate. Ride height/spring rate is listed as front/rear. Also, if you have one of the spring sets listed below, provide me with before/after pics and I will give you credit.

Nissan Cube 2009 - Current

Springs

  B&G S2 Sport Springs
        # 62.1.62 - Lowers 1.6" / 1.2"

  Eibach
        Pro-Kit # 6395.140 - Lowers 1.3 / 1.0"
        Sportline # 4.9563 - Lowers 1.8" / 1.5"

  H&R
        # 53028 - Lowers 1.3" / 1.2"

  Megan Racing
        # MR-LS-NV06 - Lowers 2.0" / 1.75"
        Before Side/After Side, Before Front/After Front, Before Back/After Back <-- pics courtesy of cubeme

  Tanabe NF210
        # TNF147 - Lowers 1.5" / 1.4"

  Tein S-Tech
        # SKK06-AUB00 - Lowers 1.2" / 1.1"


Coilovers

  K-Sport
        Kontrol Pro # CNS370-KP - Spring Rate of 7.0 / 3.6
        Version RR # CNS370-RR

  Tanabe Sustec Pro S-OC
        # TSC123 - Lowers 1.375 to 2.25 / 1.875 to 2.875 // Spring Rate of 5.0 / 4.0

  Tein
        # DSP58-LUAS2 - Lowers 1.3 to 2.3 / 1.4 to 2.4 // Spring Rate of 5.0 / 6.0
Logged
Did my post help you out? Thank me by boosting my rep!
I MAKE CUBE DECALS!
Nissan Cube Life
« on: January 31, 2011, 08:35:49 PM »
 Logged
TheGuy
Low Rider
***

Rep Horsepower: 3
Offline Offline

Posts: 328
« Reply #1 on: February 01, 2011, 01:27:36 AM »
There's also H&R lowering springs, RS*R coils (only in Japan?), and Tanabe coils. Maybe for the coil over info you could include estimated drop range (min-max) as well as spring rates?
Logged
CubinMissile
Gear Grinder
**

Rep Horsepower: 4
Offline Offline

Gender: Male
Posts: 249
« Reply #2 on: February 01, 2011, 04:30:54 AM »
Tanabe Sustec S-0C Coilovers
Logged
LOL @ your fake wheels
SlammedNiss
Low Rider
***

Rep Horsepower: 10
Offline Offline

Gender: Male
Posts: 269



WWW
« Reply #3 on: February 01, 2011, 07:02:38 PM »
Quote from: TheGuy on February 01, 2011, 01:27:36 AM
There's also H&R lowering springs, RS*R coils (only in Japan?), and Tanabe coils. Maybe for the coil over info you could include estimated drop range (min-max) as well as spring rates?
Added both H&R and Tanabe. Can't find any info on RS*R Coils for the Cube. If you can provide a link I'll add it to the OP.
Logged
Did my post help you out? Thank me by boosting my rep!
I MAKE CUBE DECALS!
D3stro
Redliner
*****

Rep Horsepower: 23
Online Online

Gender: Male
Posts: 1532


Angry french canadian
« Reply #4 on: April 01, 2011, 02:45:38 PM »
Anyone know the spring rate of the oem spring? And for direct comparation, the spring rate of some of the aftermarket one.

One thing 1 know, the NF210 from Tanabe are suppose to be 5% stiffer than oem.
Logged
Nissan driver since 2003!
JRocZilla
Spark Plug
*

Rep Horsepower: 0
Offline Offline

Gender: Male
Posts: 5
« Reply #5 on: April 15, 2012, 02:31:18 PM »
this shld probably be locked in to pg 1 f the section....just a suggestion so people don't have to go "searching for answers like this...its on pg 1 when the click the link to the section
Logged
SlammedNiss
Low Rider
***

Rep Horsepower: 10
Offline Offline

Gender: Male
Posts: 269



WWW
« Reply #6 on: April 15, 2012, 02:43:59 PM »
Quote from: JRocZilla on April 15, 2012, 02:31:18 PM
this shld probably be locked in to pg 1 f the section....just a suggestion so people don't have to go "searching for answers like this...its on pg 1 when the click the link to the section
Good luck with that. The moderators here are non-existent. I'm seriously considering starting a p0rn thread.
Logged
Did my post help you out? Thank me by boosting my rep!
I MAKE CUBE DECALS!
InYubaSha
Gear Grinder
**

Rep Horsepower: 2
Offline Offline

Gender: Male
Posts: 97
« Reply #7 on: October 22, 2012, 09:46:01 PM »

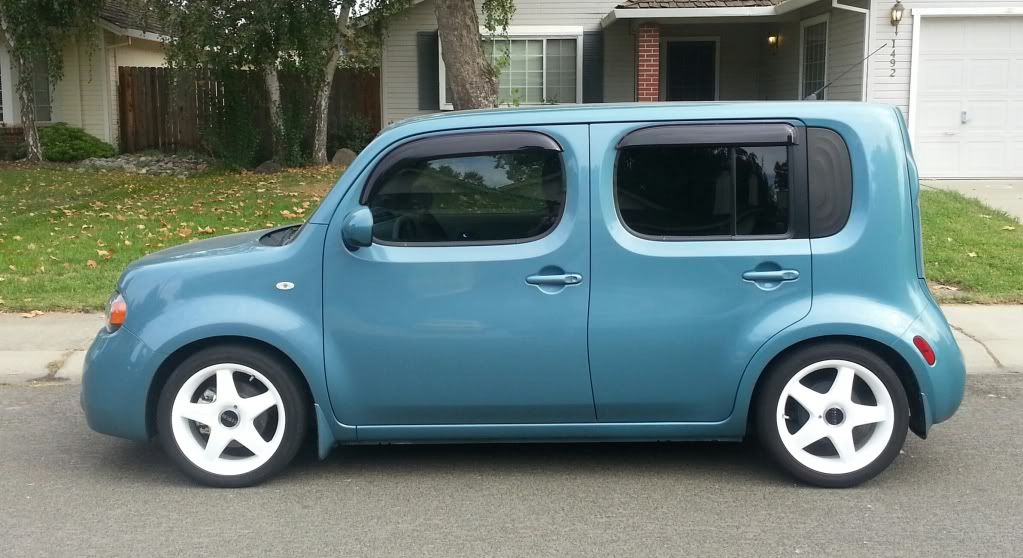

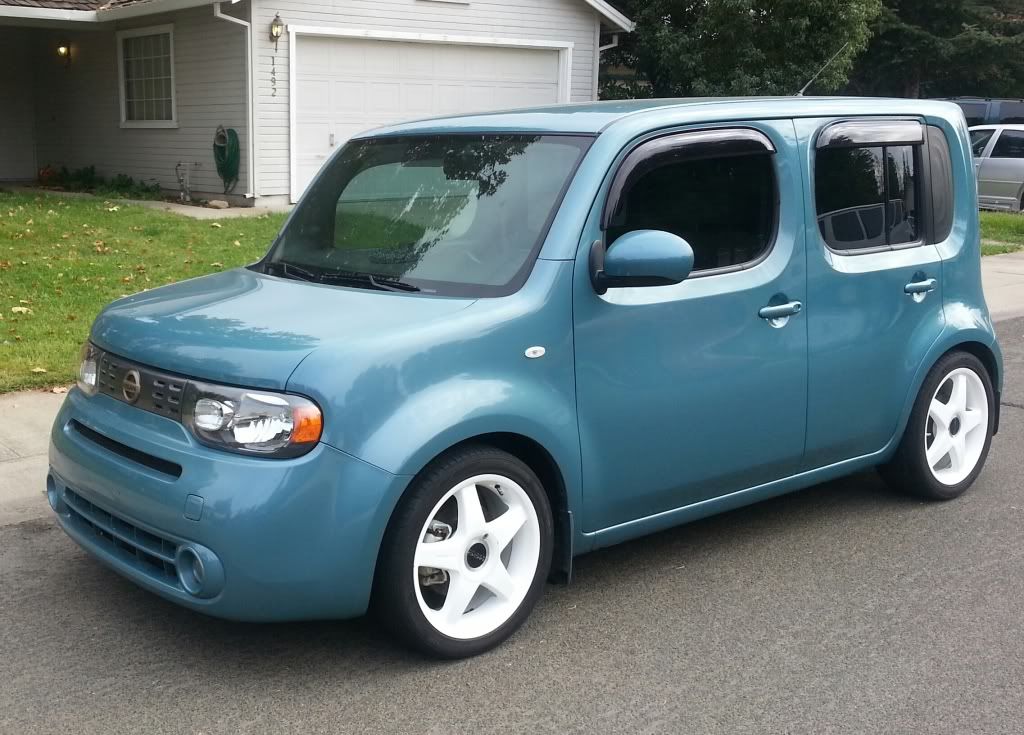

 H&R
        # 53028 - Lowers 1.3" / 1.2"

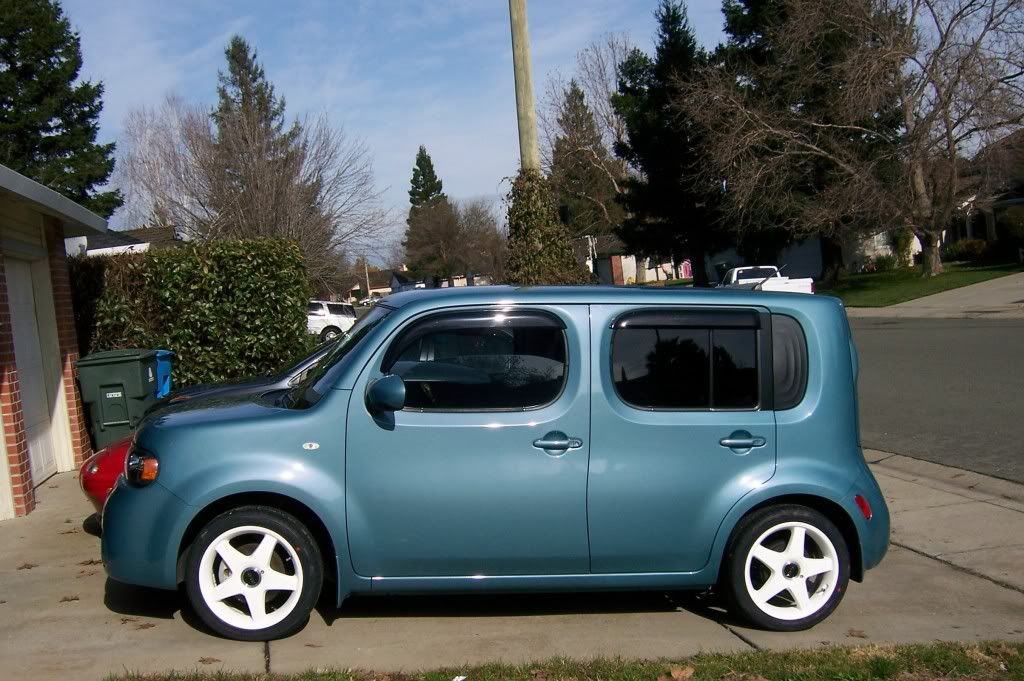

Incline on the before pic, but you get the idea
Logged
boxing w/o gloves
BoxiePoser
Gear Grinder
**

Rep Horsepower: 0
Offline Offline

Gender: Male
Posts: 240
« Reply #8 on: February 03, 2013, 02:21:21 PM »
thumbs up for this thread. was looking for some info on springs.
Logged
Tenzin
HotrodCube
Spark Plug
*

Rep Horsepower: 0
Offline Offline

Gender: Male
Posts: 30
« Reply #9 on: February 17, 2013, 06:48:20 AM »
Megan springs from Bean Garage!
Logged
blakebaker
Spark Plug
*

Rep Horsepower: 0
Offline Offline

Gender: Male
Posts: 4
« Reply #10 on: February 21, 2013, 01:46:59 PM »
Can Somebody Post A Pic Of The Drop On The Eibach Sportlines? I Know A Couple Of You Guys Are Using Them...
Logged
2010 cube S
Chrome Silver
D3stro
Redliner
*****

Rep Horsepower: 23
Online Online

Gender: Male
Posts: 1532


Angry french canadian
« Reply #11 on: February 21, 2013, 01:56:36 PM »
Quote from: blakebaker on February 21, 2013, 01:46:59 PM
Can Somebody Post A Pic Of The Drop On The Eibach Sportlines? I Know A Couple Of You Guys Are Using Them...

Yeah sure, look a this link.

http://www.nissancubelife.com/forum/index.php?topic=4564.0
Logged
Nissan driver since 2003!
yonatan
Gear Grinder
**

Rep Horsepower: 0
Offline Offline

Posts: 52
« Reply #12 on: February 28, 2013, 12:44:48 PM »
just got my installed, megan sport

Before and after pics



close up rear



close up front
Logged
HotrodCube
Spark Plug
*

Rep Horsepower: 0
Offline Offline

Gender: Male
Posts: 30
« Reply #13 on: February 28, 2013, 01:06:39 PM »
Nice yonatan! I want a rack so bad!!!
Logged
D3stro
Redliner
*****

Rep Horsepower: 23
Online Online

Gender: Male
Posts: 1532


Angry french canadian
« Reply #14 on: February 28, 2013, 01:53:12 PM »
They sure don't look like to lower 2.0''R and 1.75''R compared to the pictures from HotRodCube....weird.
Logged
Nissan driver since 2003!
yonatan
Gear Grinder
**

Rep Horsepower: 0
Offline Offline

Posts: 52
« Reply #15 on: March 01, 2013, 07:18:39 AM »
Quote from: D3stro on February 28, 2013, 01:53:12 PM
They sure don't look like to lower 2.0''R and 1.75''R compared to the pictures from HotRodCube....weird.

 Sad i know right? i was kind of disappointed too, do you think they installed it backwards? i took it to a good shop but i have doubts, maybe they put the front springs on the back idk  Embarrassed
Logged
HotrodCube
Spark Plug
*

Rep Horsepower: 0
Offline Offline

Gender: Male
Posts: 30
« Reply #16 on: March 01, 2013, 11:44:07 AM »
It will settle!
Go drive it hard.
Logged
yonatan
Gear Grinder
**

Rep Horsepower: 0
Offline Offline

Posts: 52
« Reply #17 on: March 06, 2013, 12:56:31 PM »
Quote from: HotrodCube on March 01, 2013, 11:44:07 AM
It will settle!
Go drive it hard.
Cheesy 8)thanks HotRodcube
Logged
BoxiePoser
Gear Grinder
**

Rep Horsepower: 0
Offline Offline

Gender: Male
Posts: 240
« Reply #18 on: April 28, 2013, 09:10:54 AM »
Quote from: yonatan on February 28, 2013, 12:44:48 PM


which window visor is that?
Logged
Tenzin
D3stro
Redliner
*****

Rep Horsepower: 23
Online Online

Gender: Male
Posts: 1532


Angry french canadian
« Reply #19 on: April 28, 2013, 02:20:35 PM »
AVS ventvisor part number 94177 it is. Got the same one.
